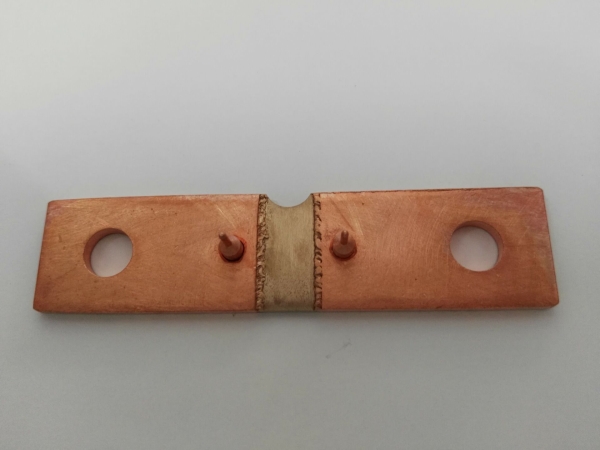

High power current sense resistors RCS8420 series
Ordering code
RCS 8420 36 T J 2 E L100
(1) (2) (3) (4) (5) (6) (7) (8)
(1) Series type: RCS (Resistors of High Power Alloy Current Shunt)
(2) Size: 8420
(3) Power rating: 15 = 15W; 36 = 36W; Imax = 600A
(4) Sensing terminal type: A; B; C; as showing in dimension figures. Customer oriented sensing terminal available upon request
(5) Resistance Tolerance: F(±1%); G(±2%); J(±5%)
(6) Temperature coefficient: 1= ±75ppm/℃; 2= ±50ppm/℃
(7) Packaging Material: E = Emboss
(8) Resistance Code: L100 = 100μΩ
Unless otherwise specified, all values are tested at the following condition:
Temperature: 21℃ to 25℃ and Relative humidity: 45% to 70% via four point probes testing system.
